Characteristics:
◆ Designed for quick and easy installation, providing flexibility while saving space.
◆ A diverse range of models is available to meet the full spectrum of pneumatic piping needs.
◆ The direction of the tubing can be altered after installation for greater flexibility.
◆ The elliptical release ring allows for easier, more efficient disconnection.
◆ Pre-coated Teflon on tapered threads ensures a secure and durable seal.
◆ Fittings feature internal hexagonal holes, allowing for simple installation in tight spaces.

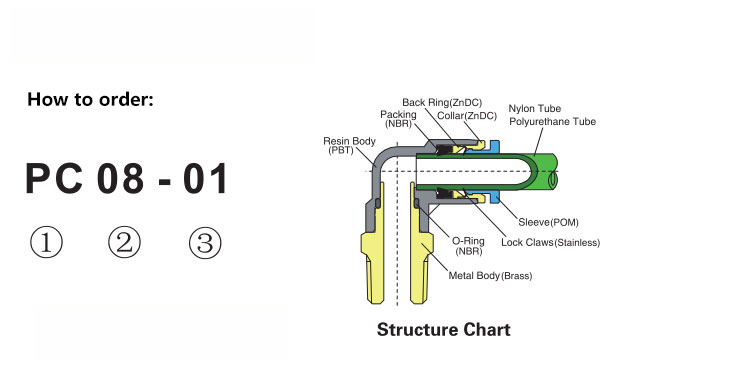

①Type
②Tube Outer Diameter
| Metric Size | ||||||
| Code | 04 | 06 | 08 | 10 | 12 | 16 |
| Tube Outer Diameter | Φ4 | Φ6 | Φ8 | Φ10 | Φ12 | Φ16 |
| Metric Size | ||||
| Code | M5 | M6 | M8 | M10 |
| Thread | M5x0.8 | M6x1 | M8x1 | M10x1 |
③Thread Type and Size
| 55° Taper Pipe Thread | |||||
| Code | 01 | 02 | 03 | 04 | 06 |
| Thread | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| Metric Size | ||||
| M12 | M12A | M14 | M16 | M20 |
| M12x1.25 | M12Ax1.5 | M14x1.5 | M16x1.5 | M20x1.5 |
Male Straight
