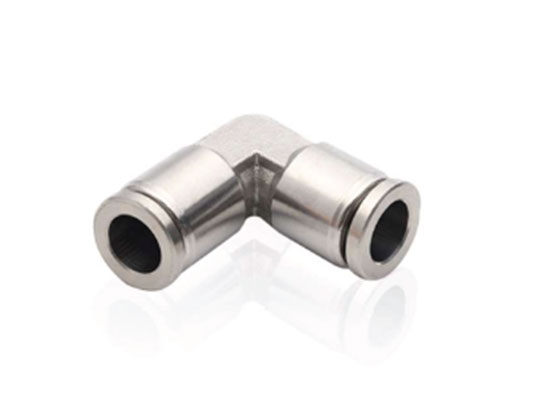

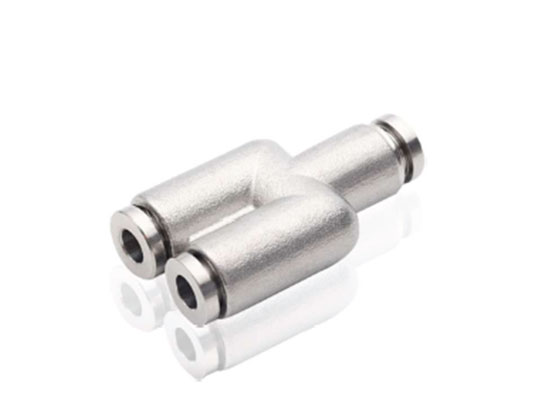

The Full Stainless Steel Pneumatic One Touch Fitting is a durable and reliable connector designed for quick and easy installation in pneumatic systems. Made entirely of high-quality stainless steel, it offers excellent resistance to corrosion, high pressure, and extreme temperatures. The one-touch design allows for fast, secure connections and disconnections without the need for tools, making it ideal for applications that require frequent maintenance or adjustments.
This fitting is commonly used in industries such as automation, manufacturing, and transportation, ensuring efficient air flow and reliable performance.
Features and characteristics
◆ High temperature resistance, corrosion resistance,
◆ The maximum working pressure reach above 2.0MPa.
◆ Easy to operate
◆ Rustless, can be used in food, medical industry
◆ Long work life
◆ Reliable sealing, leakage free
Technical parameters
◆ Working pressure: -100KPa~2.0MPa
◆ Working temperature: -20~120℃
◆ Application medium: compressed air, water, oil, other gases, vacuum
◆ Main body material: stainless steel 304, 316, 316L
◆ Sealing material: FKM (VITON) fluorine rubber
Material classification
According to the main body material, stainless steel push to connect fittings can be divided into 304, 316, 316L series.
Application range
◆ Food Industry
◆ Medical industry
◆ Corrosive environment
◆ High temperature and high pressure environment
For more information, please feel free to Contact with us.
