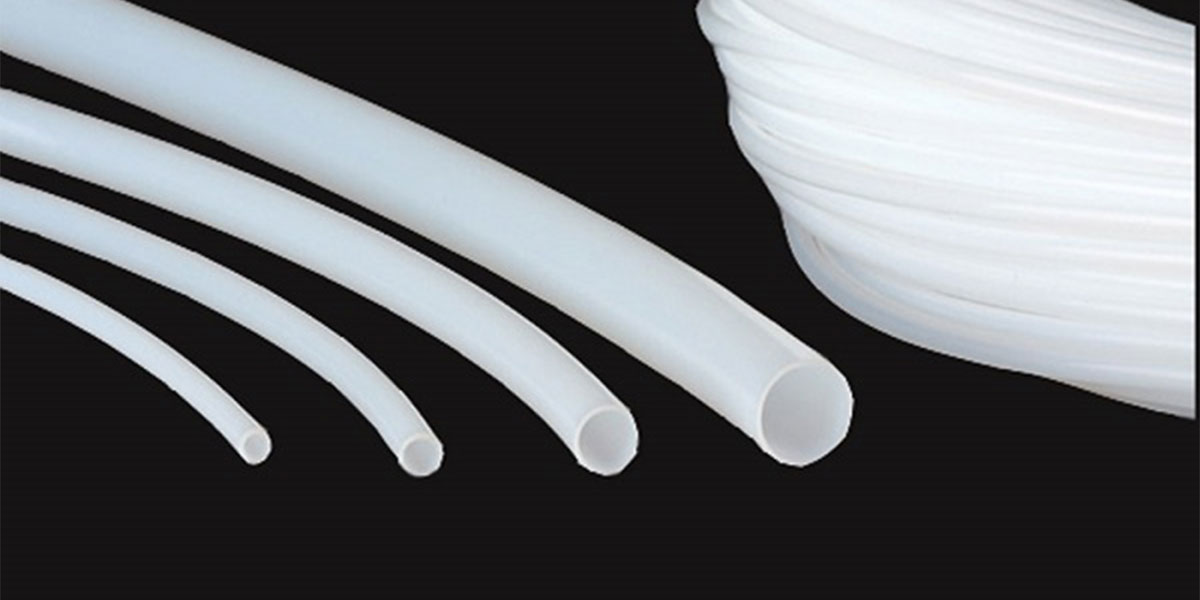

ETFE polyvinyl chloride tubing combines the exceptional properties of both ETFE (Ethylene Tetrafluoroethylene) and PVC (Polyvinyl Chloride). ETFE enhances the tubing's resistance to high temperatures, chemicals, and environmental stress, while PVC provides flexibility and durability.
This tubing is ideal for applications that require a high level of performance in aggressive environments, such as chemical processing, fluid handling, and other industrial uses. The combination of these two materials ensures that ETFE polyvinyl chloride tubing is resistant to wear, UV degradation, and is capable of withstanding a wide range of temperatures.
Specification
| Model | OD*ID | Maximum Working Pressure | Minimum Bending Radius | Color | |||||
| ETFE 1/16"*0.02" | 1.58*0.51 | 20℃ | 100℃ | 150℃ | 10 | Black | Transparent Red | Transparent blue | Semitransparent |
| ETFE 1/16"*0.016" | 1.58*0.41 | 1.7 | 0.9 | 0.6 | 10 | ||||
| ETFE 1/8"*3/32" | 3.18*2.38 | 1.4 | 0.7 | 0.5 | 20 | ||||
| ETFE 1/8"*1/16" | 3.18*1.58 | 1.5 | 0.8 | 0.5 | 30 | ||||
| ETFE 5/16"*0.232" | 7.93*5.89 | 1 | 0.5 | 0.4 | 50 | ||||
| ETFE 3/8"*0.278" | 9.52*7.06 | 35 | |||||||
Characteristic
Excellent chemical resistance, high temperature resistance, excellent mechanical properties, low friction coefficient, UV protection.
Chemical, pharmaceutical, food, electronics, etc.
Get a free sample
