How To Differentiate And Select Teflon Pipe?

In industrial applications, Teflon pipes（PTFE pipes） are widely used for their excellent chemical resistance and high temperature stability, but do you know how to distinguish PTFE family materials. And what is the difference between PTFE and Teflon?

This article discusses the characteristics of different types of Teflon tubes, including PTFE, ETFE, FEP, and PFA, to help readers make informed choices in specific applications

The birth and development of Teflon materials

In 1938, Dr.Roy Plunkett, a chemist at DuPont, was conducting an experiment to react fluorine gas with ethylene. Due to the catalytic effect of iron on the polymerization reaction inside the container, he accidentally produced a white solid substance. This material later became known as PTFE (polytetrafluoroethylene).

After verifying the excellent properties of PTFE, DuPont secured its patent in 1941 and registered the trademark “Teflon” in 1944. At that time, the term "Teflon" generally referred to PTFE.

Following the 1970s, as understanding of PTFE deepened, DuPont developed a series of new products. Today, "Teflon" usually refers to the family of fluoroplastics, including PTFE, PFA, FEP, ETFE, and others. These materials each excel in chemical stability, temperature resistance, and processability, making them suitable for more complex and specialized applications.

What are the commonly used types of Teflon?

PTFE

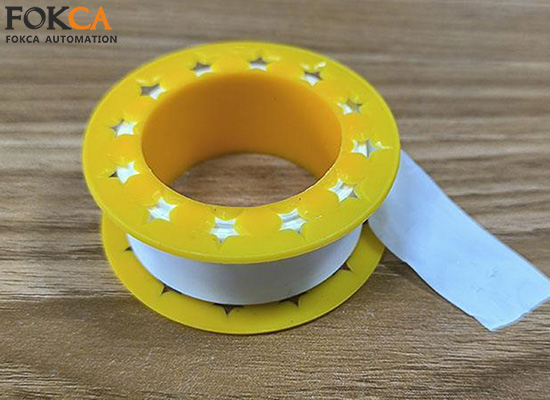

To this day, PTFE remains one of the most common Teflon materials. Its molecular structure consists of carbon-fluorine bonds, which give it extremely high chemical stability, allowing it to resist all strong acids, bases, oxidizers, reducers, and various organic solvents except molten alkali metals, fluoride media, and molten strong bases.

PTFE has excellent high-temperature resistance, maintaining good mechanical properties in the range of -80°C to 260°C, with remarkable impact resistance.

One of the most notable features of PTFE is its exceptionally low coefficient of friction, which is less than or equal to 0.1, making it one of the best self-lubricating materials known.

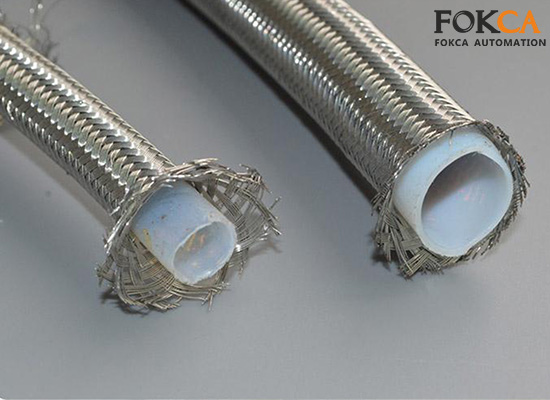

Due to these properties, PTFE tube is widely used in core piping systems for industries such as chemicals, pharmaceuticals, and electronics, as well as in corrosion-resistant and precision mechanical manufacturing applications.

However, PTFE also has its drawbacks: its mechanical properties are weaker compared to other engineering plastics, it is difficult to process, and it is expensive.

ETFE

ETFE, or ethylene-tetrafluoroethylene copolymer, is a fluoroplastic made by copolymerizing ethylene and tetrafluoroethylene monomers.

While some of its properties are not as outstanding as PTFE’s, ETFE has excellent overall performance. Its chemical stability and corrosion resistance are also enhanced by the presence of fluorine atoms in its molecular structure.

ETFE has significantly better mechanical properties than PTFE, with tensile strength almost double that of PTFE.

Additionally, its high transparency and good weatherability make it more suitable for use in building membrane structures, photovoltaic protective films, and protective outer layers for electrical equipment.

Moreover, ETFE is easier to process and has a lower cost, which makes it suitable for a broader range of applications.

However, ETFE’s temperature resistance is noticeably weaker than PTFE’s, making it unsuitable for extreme temperature environments.

FEP

FEP, or fluorinated ethylene propylene copolymer, is made by copolymerizing tetrafluoroethylene and hexafluoropropylene monomers. Its molecular structure is similar to PTFE, so it also boasts outstanding chemical resistance and low friction properties.

FEP's temperature resistance is slightly lower than PTFE’s, ranging from -200°C to 204°C, but its other properties are similar to those of PTFE.

One significant advantage of FEP is its high transparency, with light transmittance typically reaching over 90%. It is also easier to process, requiring lower processing temperatures, and can be fabricated using conventional thermoplastic processing methods, making it suitable for mass production.

Additionally, FEP is non-toxic, odorless, and environmentally friendly, making it safe for direct contact with food and pharmaceuticals, which makes it ideal for use in food processing and pharmaceutical industries.

PFA

PFA, or perfluoroalkoxy copolymer, has a molecular structure similar to PTFE and shares many of its excellent properties. It also improves upon PTFE in terms of processability, transparency, and mechanical strength.

PFA has nearly identical working temperature capabilities to PTFE, ranging from -200°C to 260°C. Its creep resistance, tensile strength, and compressive strength are superior to PTFE’s.

PFA can be melt-processed at lower temperatures, addressing PTFE’s difficulty in melt-processing, and offers better processing characteristics

Due to its excellent performance, PFA is an ideal material for manufacturing corrosion-resistant pipes, mechanical seals, solar panels, electrical insulation, and equipment used in food and pharmaceutical processing.

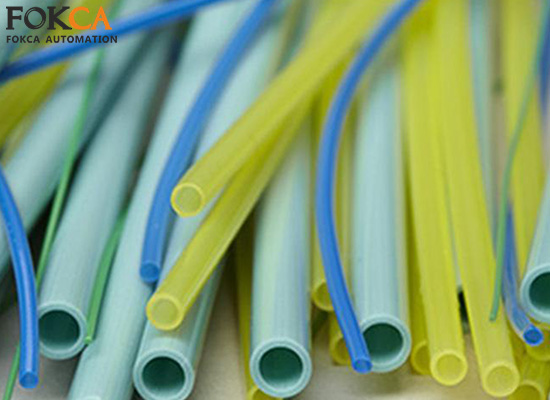

How to choose the right Teflon tube?

Fluoroplastic pipes, as a high-end piping product, are widely used in industries such as chemicals, semiconductors, electronics, pharmaceuticals, and machinery due to their outstanding performance. These pipes are suitable for applications with high performance requirements.

To select the appropriate fluoroplastic pipe, it's important to understand the characteristics of each type of fluoroplastic and match them to your specific needs. Below are some recommendations based on common operational requirements.

Working Temperature
For pipes that need to operate in high-temperature environments, PTFE and PFA are the best choices, with a maximum working temperature of 260°C, and they can tolerate even higher temperatures for short periods. In medium-temperature environments, ETFE and FEP materials are more suitable.

Chemical Stability
PTFE and PFA are ideal for extreme chemical environments due to their nearly universal corrosion resistance. FEP and ETFE are also suitable for standard chemical environments.

Mechanical Strength

If the application requires high mechanical strength, such as for seals or wear-resistant components, PFA is a better option. For lower mechanical strength applications, ETFE and FEP offer better cost-performance ratios.

Cost
Generally, PTFE and PFA are more expensive due to raw material and processing requirements, making them more suitable for high-performance, specialized applications. ETFE and FEP offer a more balanced performance-to-cost ratio.

Special Requirements
If transparency is required, FEP and ETFE are the best choices, whereas PTFE is not suitable. For long-term outdoor use, ETFE and PFA should be prioritized due to their superior UV resistance.

Fluoroplastics and Fluororesin tubing possess a range of unique properties such as excellent temperature resistance, chemical stability, and low friction coefficients, making them superior to other common plastics in certain specialized applications.

However, their higher price often makes them better suited for demanding industrial and research fields, while more common plastics like PE, PU, PA, and PP are used in general consumer products and industrial applications.
