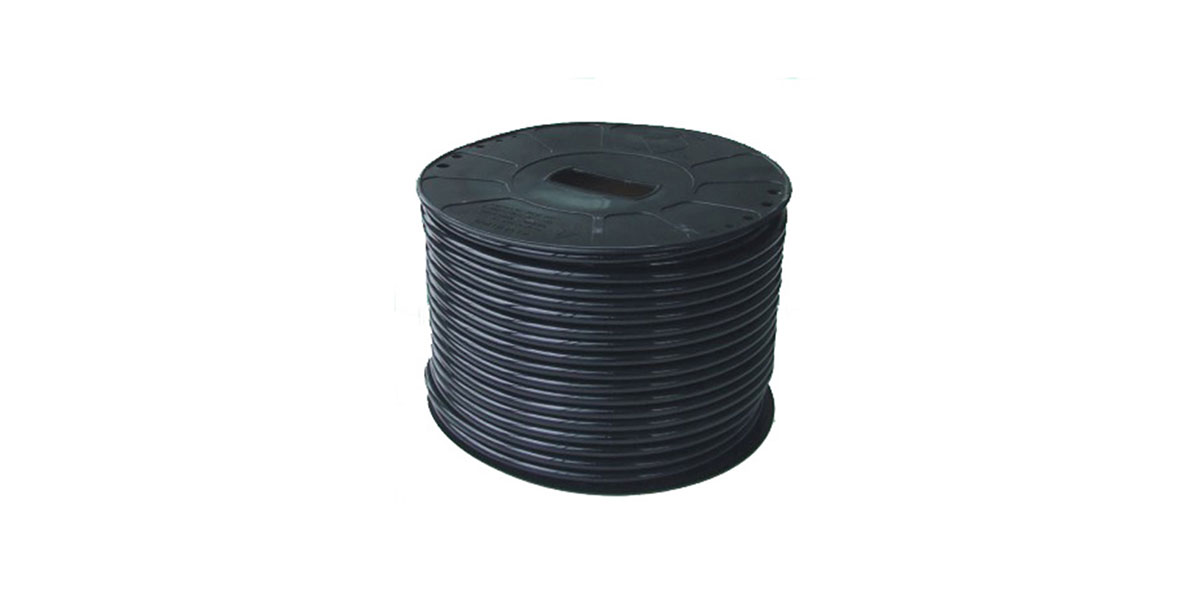

90A Polyurethane hose is slightly stiffer than the 85A version, providing increased resistance to pressure and wear. With a Shore A hardness of 90, this hose is designed for applications requiring more strength and rigidity, such as in high-pressure air systems or heavy-duty industrial environments.
Despite its higher hardness, the hose maintains good flexibility for easy installation and movement, making it suitable for a wide range of pneumatic and fluid transfer applications.
Specification
| Material | Thermoplastic Ether-Based Polyurethane |
| Applicable medium | Air, Water, Vacuum |
| Working pressure range | 0~1.0MPa |
| Burst pressure | 2.4~3.0MPa |
| Embient and fluid temperature | -20℃~+80℃ |
| Hardness Shore A | 90A ASTM D-2240 |
| Tensile strength(kg/cm2) | 600 ASTM D-638 |
| Ultimate elongation(%) | 490~590 ASTM D-638 |
| Taber abrasion(mg) | 30~40 ASTM D-1044 |
| Tear strength(kg/cm2) | 155 ASTM D-732 |
◆ High Flexibility: Offers excellent flexibility and can bend easily without kinking, even in cold temperatures.
◆ Abrasion Resistant: Highly durable with superior abrasion resistance, making it ideal for tough environments.
◆ Excellent Airflow: Provides smooth internal surfaces for efficient airflow with minimal pressure loss.
◆ Chemical Resistance: Resistant to many chemicals, oils, and fuels, enhancing its versatility.
◆ Lightweight: Lighter than many other types of air hoses, making it easier to handle and install.
◆ Good Tensile Strength: Withstands high pressure and mechanical stress without stretching or breaking.
